Closed Valentijn 2000 class

The Rigid Inflatable Boat (RIB) concept is appreciated more and more all over the world and their purpose and tasks have been significantly extended. HABBEKÉ SHIPYARD has further developed the VALENTIJN class RIB into a multipurpose vessel for evacuation, ambulance vessel, inspection vessel and crew or pilot tender.

The largest development is the closed wheel house that makes the vessel more comfortable and provides more shelter. The vessel has 14 seats and 2 stretchers. It’s a category A vessel and self-righting that makes it an “all weather boat”.

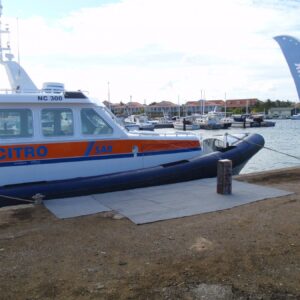

Used as rescue vessel by the CITRO at Curacao (link  http://citro.org/ )

These vessels are built according to the standards and rules of the American Bureau of Shipping (ABS X A1 HSC.AMS).

Specifications:

Length overall                                                  12.00m

Length of hull                                                   10.96m

Maximum Beam (over the tubes)         4.10m

Beam (hull)                                                        3.52m

Draft                                                                     0.70m

Fuel capacity                                                    1400L

Performance                                                    Max. 38 knots

Action radius (full power)                         7 hours

Material                                                             Aluminium H321 alustar

Engines                                                               2x Volvo-Penta D6-435 Solas, 320KW(435HP)

Reduction                                                          2x Twin Disk MG 5050SC (red. 1.71:1)

Waterjets                                                          2x Hamilton HJ322

Generator                                                         Vetus 6.5 KVA

Airco                                                                    Mave, 5kw, 17.000 BTU

Launch Method                                             Carriage/afloat
